Bolting Systems & Flange Management
- 제품별 특징 및 용도
- Bolting Systems & Flange Management
Bolt Tensioners
| Spec |

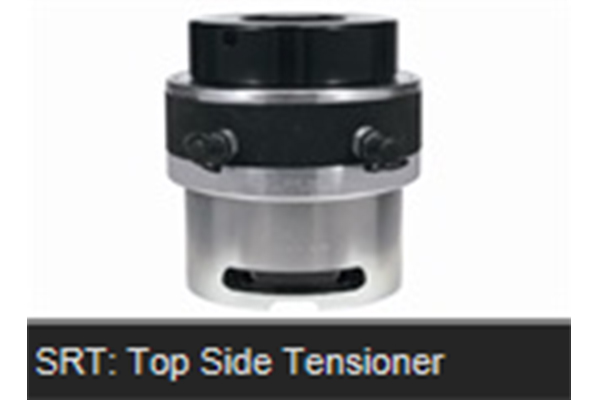

Spring Return - SRT |

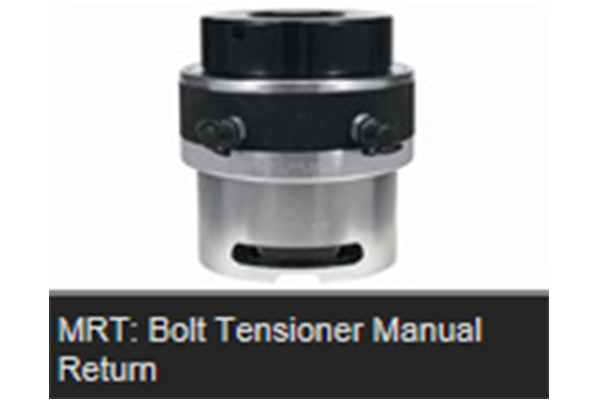

Manual Return - MRT |

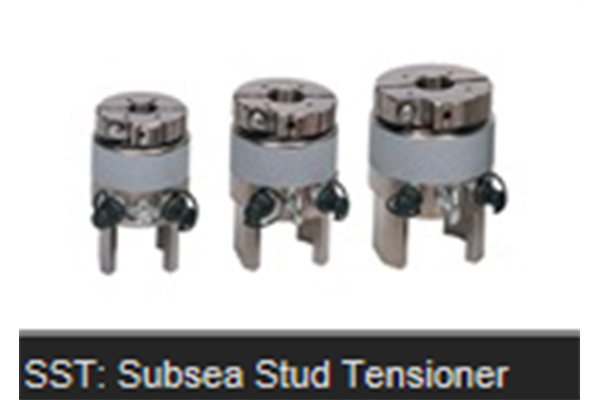

Stud Tensioner - SST |
| Bolt coverage |
20 ~ 115mm |
24 ~ 100mm |
20 ~ 100mm |
| Piston storke |
10mm |
15mm |
30mm |
| Pressure |
0 ~ 1,500bar |
0 ~ 1,500bar |
0 ~ 1,500bar |
| Tools |
8 |
6 |
7 |

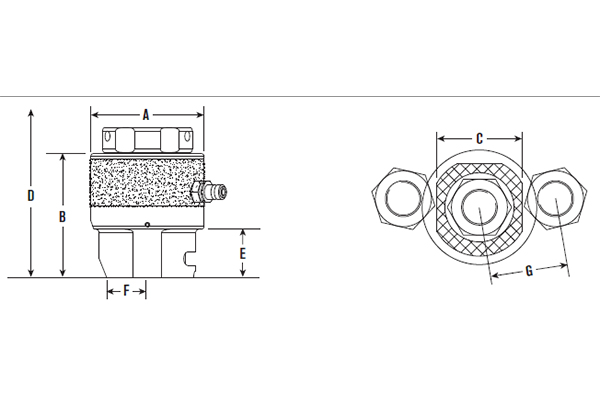

| Dimensional(M48) |
A |
140.5 |
147.5 |
136 |
| B |
142 |
125.5 |
158 |
| C |
114 |
114 |
114 |

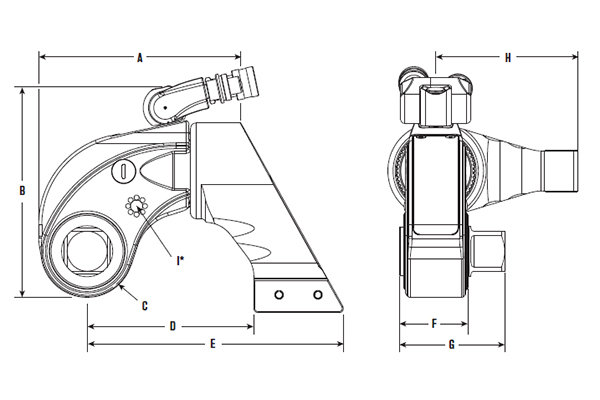

Torque Wrenches
| Spec |
Max Torque(Nm) |
Pressure(bar) |
A(mm) |
B(mm) |
H(mm) |
WT only body(kg) |

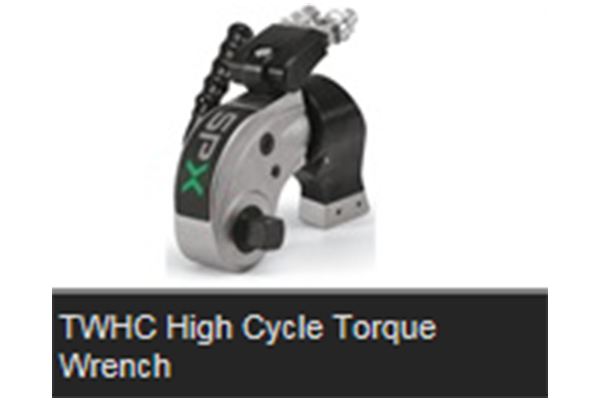

| High Cycle - TWHC |
TWHC1 |
1915 |
700 |
132 |
145 |
86.1 |
6.2 |
| TWHC50 |
71816 |
700 |
404.5 |
356.6 |
258 |
152 |

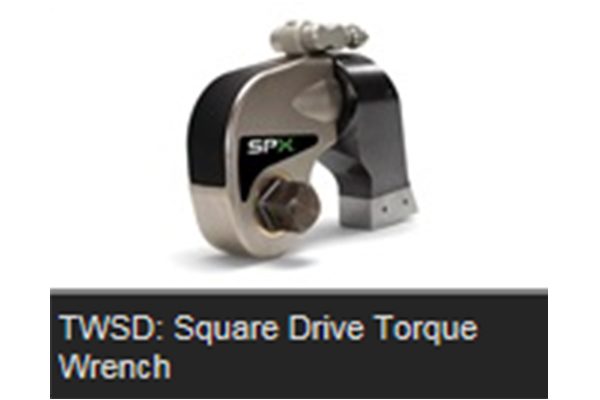

| Square Drive - TWSD |
TWSD1 |
1762 |
700 |
139 |
145 |
86 |
2.3 |
| TWSD25 |
33198 |
700 |
305 |
315 |
200 |
29.5 |

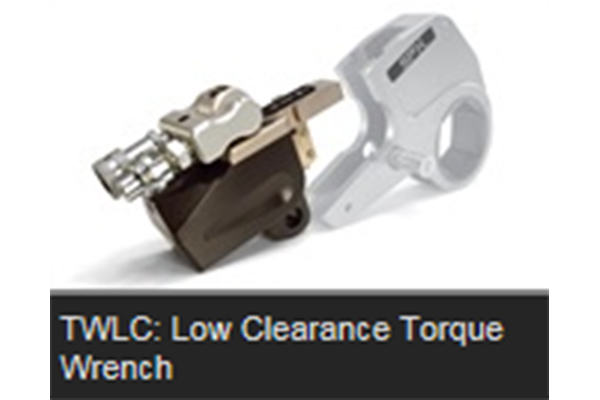

| Lower Clearance - TWLC |
TWLC2 |
2134 |
700 |
180 |
97 |
42 |
1 |
| TWLC30 |
39024 |
700 |
400 |
223 |
94 |
14.5 |
Hydraulic Pumps(Air)
| Spec |
Air |

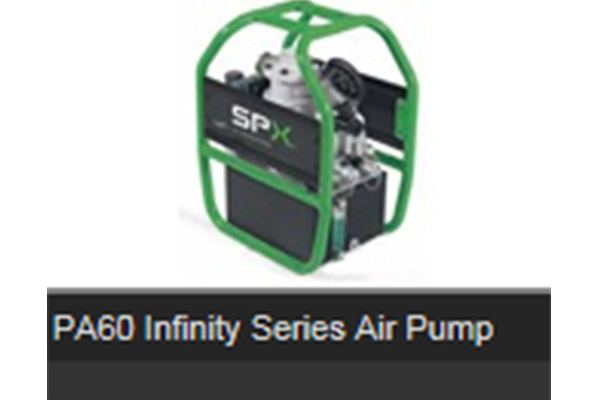

| PA60A |

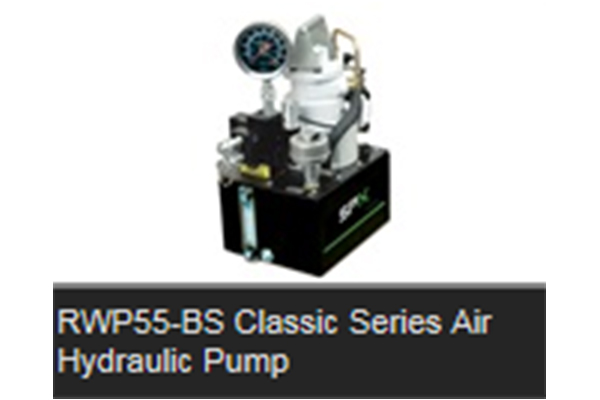

RWP55-BS |

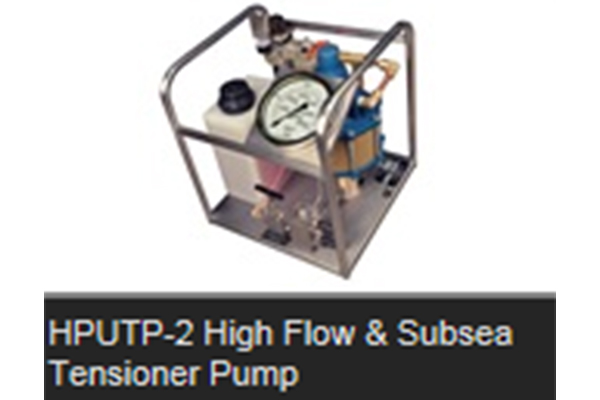

HPUTP-2 |
| Size(mm) |
500 * 360 * 510 |
420 * 240 * 500 |
460 * 530 * 520 |
| Weight(kg) |
40 |
38 |
23 |
| Maximum Oil Capacity(L) |
8.5 |
6.8 |
9.5 |
| Sound Level(dBA) |
76 |
87-92 |
85 |
| Pressure(bar) |
0~700 |
0~700 |
0~1,500 |
